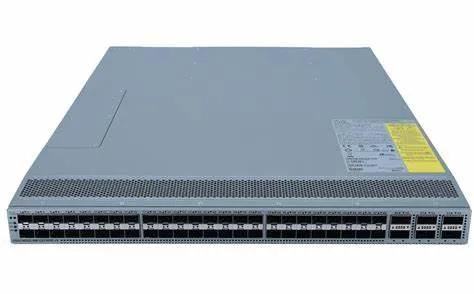

N9K-C93180YC-FX3

Key Features & Benefits

• High-Density 25G/100G Connectivity

• 48 x 1/10/25G SFP28 downlink ports for line-rate server connections.

• 6 x 40/100G QSFP28 uplink ports for high-speed spine switch interconnection.

• Non-blocking switching capacity: 3.6 Tbps.

• Forwarding rate: 1.2 Bpps.

• Ultra-low latency: < 1 microsecond (cut-through mode).

• Robust Hardware & Scalability

• 16 GB DRAM / 16 GB flash memory for extensive routing tables and telemetry.

• 48 MB dynamic shared packet buffer to absorb traffic bursts.

• 4x hot-swappable fan modules (N+1 redundancy) with Port-side Intake (PI, burgundy) or Port-side Exhaust (PE, blue) airflow.

• Dual redundant, hot-swappable power supplies (650W AC or 1200W HVAC/HVDC options).

• Advanced Data Center Features

• Comprehensive protocol support: VXLAN EVPN, BGP, OSPF, vPC.

• Line-rate MACsec-256 encryption for secure data transmission.

• Precision Time Protocol (PTP/IEEE 1588v2) for accurate clock synchronization.

• Supports Python, REST API, XML, JSON for full programmability.

• Manageable via CLI, GUI, DCNM, NX-API.

Technical Specifications

Parameter	Details
Part Number	N9K-C93180YC-FX3
Form Factor	1U Rack-mountable
Fixed Ports	48 x 1/10/25G SFP28; 6 x 40/100G QSFP28
Switching Capacity	3.6 Tbps (non-blocking)
Forwarding Rate	1.2 Bpps
Latency	< 1 μs (cut-through)
Buffer	48 MB shared
CPU/Memory	Multi-core; 16 GB DRAM; 16 GB Flash
Airflow	Port-side Intake (PI) or Port-side Exhaust (PE)Cisco
Power Supplies	Dual, hot-swappable (650W AC / 1200W HVAC/HVDC)
Fans	4x hot-swappable fan modulesCisco
Power Consumption	~250W (typical); 350W (max)
Dimensions (WxDxH)	43.9 x 49.6 x 4.4 cm
Weight	9.52 kg (chassis only)
