N9K-C9348GC-FXP

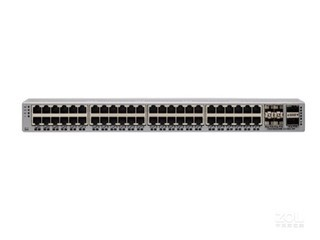

The Cisco Nexus 9348GC-FXP (N9K-C9348GC-FXP) is a 1RU (rack-unit) fixed-configuration Layer 2/Layer 3 data center switch, part of the Cisco Nexus 9300 series. It is purpose-built as a high-density 1GBASE-T Top-of-Rack (ToR) switch, ideal for connecting legacy Gigabit servers while providing modern, high-speed uplinks for scalable leaf-spine architectures. It supports both NX-OS standalone mode and ACI (Application Centric Infrastructure) mode.

EMAIL

Key Features & Benefits

  • High-Density 1G Connectivity with Modern Uplinks

    • 48 x 10/100/1000BASE-T (RJ45) downlink ports for legacy Gigabit server access.

    • 4 x 1/10/25G SFP28 ports for high-speed server or switch connections.

    • 2 x 40/100G QSFP28 uplink ports for spine connectivity.

    • Total switching capacity: 696 Gbps.

    • Forwarding rate: Up to 952 Mpps.

  • Robust Hardware & Operational Efficiency

    • 24 MB shared packet buffer for handling traffic bursts.

    • Dual redundant, hot-swappable 350W AC power supplies.

    • 3x hot-swappable fan modules with choice of Port-side Intake (burgundy) or Port-side Exhaust (blue) airflow.

    • Typical power consumption: 178W; Max: 287W.

    • Compact 1U form factor saves valuable rack space.

  • Advanced Data Center & Security Features

    • Comprehensive protocol support: VXLAN, EVPN, BGP, OSPF, vPC.

    • Line-rate MACsec encryption on all ports for secure data transmission.

    • Precision Time Protocol (PTP/IEEE 1588v2) for accurate clock synchronization.

    • Manageable via CLI, GUI, DCNM, REST API, POAP.

    • Supports Cisco Cloud Scale technology for telemetry and analytics.


Technical Specifications

ParameterDetails
Part NumberN9K-C9348GC-FXP
Form Factor1U Rack-mountable
Fixed Ports48 x 10/100/1000BASE-T (RJ45)4 x 1/10/25G SFP282 x 40/100G QSFP28
Switching Capacity696 Gbps
Forwarding RateUp to 952 Mpps
Packet Buffer24 MB shared
CPU/MemoryMulti-core CPU, 16 GB DRAM
AirflowPort-side Intake (PI) or Port-side Exhaust (PE)
Power SuppliesDual, hot-swappable 350W AC (NXA-PAC-350W)
Fans3x hot-swappable fan modules
Power Consumption178W (typical) / 287W (max)
Dimensions (WxDxH)43.9 cm x 53.3 cm x 4.4 cm
Weight6.44 kg (chassis only)
Operating Temperature0°C to 40°C
Operating SystemCisco NX-OS / ACI
