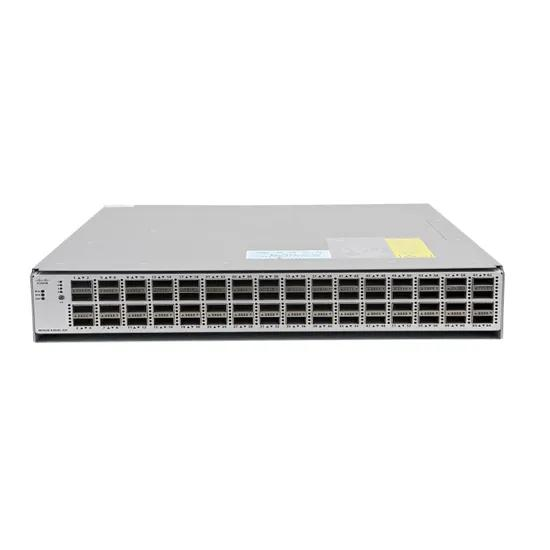

The Cisco Nexus 93600CD-GX (N9K-C93600CD-GX) is a highly versatile, 1RU fixed-configuration data center switch. Designed for hybrid cloud, AI/ML, and high-frequency trading (HFT) environments, it serves as both a Top-of-Rack (ToR) leaf and a compact spine switch. It supports Cisco NX-OS and ACI modes, blending high-density 100G and 400G connectivity.
Mixed 100G/400G Port Density
28 x QSFP28 ports: 40/100G (supports 10/25G via QSA adapter).
8 x QSFP-DD ports: 400G (also supports 100/200G).
Switching Capacity: 12.8 Tbps (full-duplex).
Forwarding Rate: 4.0 Bpps.
Packet Buffer: 80 MB shared dynamic buffer.
Compact & Efficient Hardware
1RU Rack-mountable form factor.
4-core Broadwell-DE CPU, 32 GB DRAM, 128 GB SSD.
6x hot-swappable fan modules (N+1 redundancy).
Dual hot-swappable 1100W AC/DC power supplies.
Port-side Intake (PI) / Exhaust (PE) airflow.
Advanced Data Center Capabilities
Ultra-low latency: ~650ns (cut-through mode).
MACsec encryption on all ports.
VXLAN EVPN, BGP, SRv6, Telemetry, PTP (1588v2).
Breakout support: QSFP-DD ports to 4x100G, 8x50G, or 16x25G.
Optimized for RoCEv2 (AI/ML) and NVMe-oF storage.
| Parameter | Details |
|---|---|
| Part Number | N9K-C93600CD-GX |
| Form Factor | 1U Rack-mountable |
| Fixed Ports | 28x QSFP28 (100G), 8x QSFP-DD (400G) |
| Switching Capacity | 12.8 Tbps (full-duplex) |
| Forwarding Rate | 4.0 Bpps |
| Buffer | 80 MB shared |
| Latency | ~650ns (cut-through) |
| CPU/Memory | 4-core; 32 GB DRAM; 128 GB SSD |
| Power Supplies | Dual 1100W AC/DC (hot-swappable) |
| Dimensions (H x W x D) | 4.37 x 44.13 x 64.8 cm |
| Weight | 12.7 kg (28 lb) |
| Operating System | Cisco NX-OS / ACI |
| Typical Use Cases | Hybrid Cloud Leaf, Compact Spine，AI/ML, HFT |
