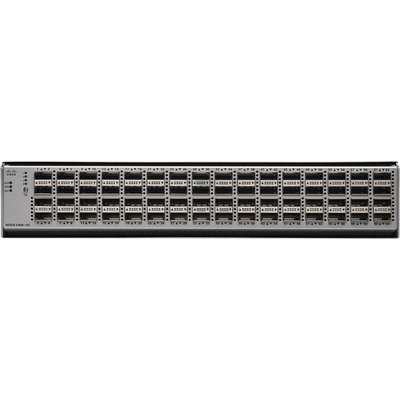

The Cisco Nexus 9364C-GX (N9K-C9364C-GX) is a high-performance, 2RU fixed-configuration data center switch. It is the 400G-ready successor to the N9K-C9364C, designed as a top-of-rack (ToR) leaf or spine switch for hyperscale clouds, AI/ML clusters, and high-frequency trading (HFT) environments. It supports both Cisco NX-OS and ACI modes.
Ultra-High Density 400G/100G Connectivity
64 x QSFP-DD ports: supporting 400GBASE-SR8/LR8, 100G QSFP56/28, and 40G QSFP optics.
Breakout capable: 1:8 to 512x 50G, 1:4 to 256x 25G, or 1:2 to 128x 50G.
Switching Capacity: 25.6 Tbps (full-duplex).
Forwarding Rate: 19.2 Bpps.
Buffer: 48–128 MB shared dynamic packet buffer.
Advanced Hardware & Performance
Cloud Scale Plus ASIC for ultra-low latency: ~500ns.
4x hot-swappable fan modules (N+1 redundancy).
Dual redundant, hot-swappable 2000W AC/DC/HVAC power supplies.
Port-side Intake (PI) or Exhaust (PE) airflow.
Next-Gen Data Center Capabilities
Hardware-accelerated AI/ML optimizations (RoCEv2, collective communication).
Full line-rate MACsec encryption on all 64 ports.
Precision Timing (PTP/IEEE 1588v2) with ±5ns accuracy.
VXLAN EVPN, BGP, SRv6, Telemetry, and In-Network Computing.
Quantum-safe cryptography support.
| Parameter | Details |
|---|---|
| Part Number | N9K-C9364C-GX |
| Form Factor | 2U Rack-mountable |
| Fixed Ports | 64 x QSFP-DD (400G/100G/40G) |
| Switching Capacity | 25.6 Tbps (full-duplex) |
| Forwarding Rate | 19.2 Bpps |
| Packet Buffer | 48 MB (up to 128 MB) shared |
| Latency | ~500ns (sub-microsecond) |
| Power Supplies | Dual 2000W AC/DC (hot-swappable) |
| Airflow | Port-side Intake (PI) / Exhaust (PE) |
| Dimensions (WxDxH) | 44.23 x 57.4 x 8.61 cm |
| Weight | ~10.5 kg |
| Operating System | Cisco NX-OS / ACI |
| Use Cases | AI/ML Fabrics, Hyperscale Spine, HFT, NVMe-oF Storage |
