Cisco PWR-IE50W-AC-IEC=

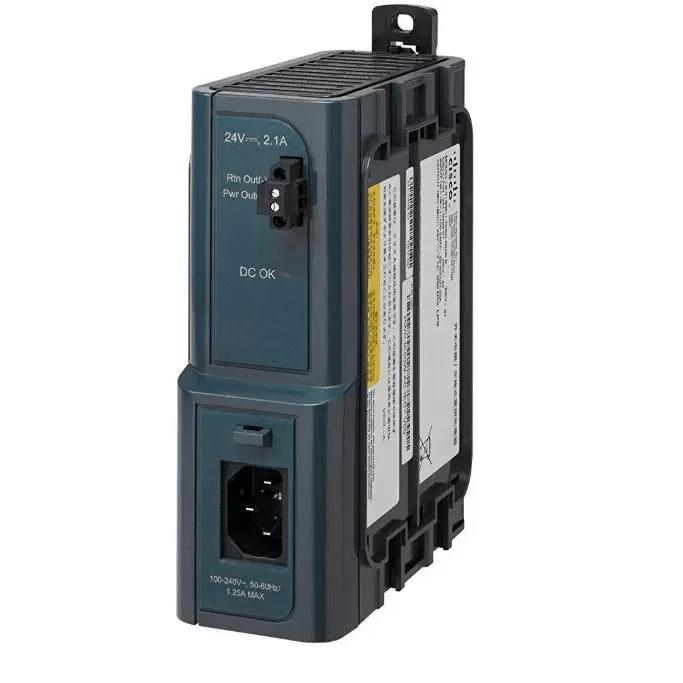

The PWR-IE50W-AC-IEC= is a compact, rugged industrial 50W AC power supply designed specifically for Cisco Industrial Ethernet fixed-port switches. It provides reliable mains AC input and stable DC output for powering non-PoE and low-power industrial switching devices in factory automation, transportation, and harsh cabinet environments. Integrated with standard IEC connector, it enables fast plug-and-play deployment.

Key Features & Benefits

Industrial Rugged Design

Fanless, convection-cooled for high reliability in harsh conditions.
DIN-rail mountable for easy installation in control panels.
Wide operating temperature: -40°C to +70°C.
Conformal coating protects against dust, moisture, and vibration.
Complies with industrial standards: IEC 61850-3, IEEE 1613, EN 50155.

IEC Connector & Universal Input

Standard IEC 60320 AC input connector for fast, secure wiring.
100–240V AC (50/60Hz) universal input for global use.

Stable Output & Safety

50W output: 24V DC / 2.1A.
Comprehensive protection: OVP, OCP, OTP, SCP.
Safety certifications: UL 60950-1, UL 62368-1, CE.

Seamless Compatibility

Designed for Cisco IE 2000, IE 3000 Series switches.

Technical Specifications

Parameter	Specification
Part Number	PWR-IE50W-AC-IEC=
Output Power	50W
Output Voltage	24V DC
Output Current	2.1A
Input Voltage	100–240V AC, 50/60Hz
Input Current	1.25A (max)
Cooling	Fanless (Convection)
Mounting	DIN-Rail
Operating Temp	-40°C to +70°C
Input Connector	IEC 60320
Protection	OVP, OCP, OTP, SCP
Certifications	UL 60950-1, UL 62368-1, CE, IEC 61850-3
Weight	Approx. 0.65kg
Compatible With	Cisco IE 2000, IE 3000 Series Switches
