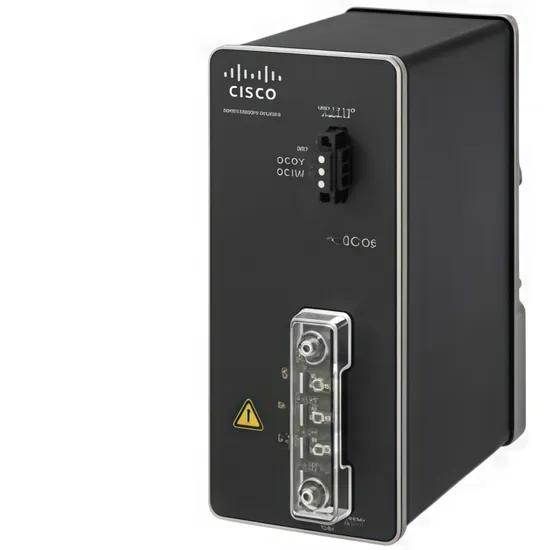

The Cisco PWR-IE65W-PC-DC= is a rugged, industrial-grade 65W DC-DC DIN-rail power supply module, purpose-built to power Cisco Industrial Ethernet (IE) switches and deliver reliable Power over Ethernet (PoE/PoE+) to connected edge devices. Engineered exclusively for harsh industrial environments such as manufacturing, oil & gas, utilities, and transportation, it accepts a wide range of low-voltage DC inputs and converts it to a stable 54V DC output to support PoE applications.
Industrial Ruggedness
Fanless, convection-cooled design for maximum reliability and minimal maintenance.
Conformal-coated PCB to resist dust, moisture, and corrosive industrial gases.
Ultra-wide operating temperature: -40°C to +75°C (no derating).
DIN-rail mountable for easy installation in industrial control panels.
Certified for Class I, Div 2 / Zone 2 hazardous locations.
Wide DC Input Compatibility
Input voltage range: 18–60V DC.
Ideal for systems powered by batteries, solar, or 24/48V industrial DC power grids.
High Performance & Safety
65W output power at 54V DC / 1.2A.
High energy efficiency (up to 92%).
Comprehensive protection: Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), Short-Circuit (SCP), and Reverse Polarity.
Safety certifications: UL 60950-1, UL 62368-1, CE, ATEX.
Seamless System Integration
Exclusively designed for Cisco IE 2000, IE 3000, and IE 4000 Series switches.
Supports IEM-3000-4PC PoE expansion modules.
Compact form-factor optimizes cabinet space.
| Parameter | Specification |
|---|---|
| Part Number | PWR-IE65W-PC-DC= |
| Total Output Power | 65W |
| Output Voltage | 54V DC |
| Output Current | 1.2A |
| Input Voltage | 18–60V DC |
| Input Current | 4.5A (max @ 24V DC) |
| Cooling Method | Fanless (Convection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 5–95% RH (non-condensing) |
| Dimensions (W x H x D) | 66 x 150 x 117 mm |
| Weight | 0.54 kg |
| Protection Features | OVP, OCP, OTP, SCP, Reverse Polarity |
| Certifications | UL 60950-1, UL 62368-1, CE, ATEX, IEC 61850-3 |
| Compatible Devices | Cisco IE 2000, IE 3000, IE 4000 Series Switches |
