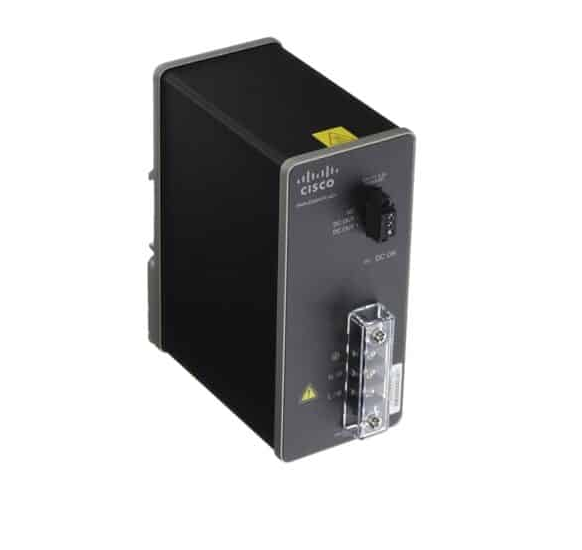

The Cisco PWR-IE65W-PC-AC= is a 65W industrial-grade DIN-rail AC/DC power supply module, purpose-built to power Cisco Industrial Ethernet (IE) switches and provide reliable Power over Ethernet (PoE/PoE+) to connected edge devices. Engineered for deployment in demanding industrial environments such as factory automation, smart infrastructure, and transportation, this compact, fanless unit delivers stable 54VDC output with universal input compatibility and robust protective features.
Industrial Rugged Design
Fanless, convection-cooled operation ensures high reliability and a long MTBF (Mean Time Between Failures) in dust-rich environments.
Conformal coating on PCB protects against humidity, condensation, and industrial pollutants.
DIN-rail mountable for easy, secure installation in standard industrial control panels.
Wide operating temperature range: -40°C to +75°C.
Flexible Universal Input
Dual input support: Accepts 90–264V AC (47–63Hz) or 88–300V DC for global grid compatibility.
Seamless integration across various industrial power infrastructures.
High Efficiency & Safety
65W output power at a stable 54V DC / 1.2A, ideal for powering PoE devices.
Comprehensive circuit protection: Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit (SCP).
High energy efficiency and Active Power Factor Correction (PFC).
Safety certifications: UL 60950-1, UL 62368-1, CE.
Seamless Compatibility
Exclusively designed for Cisco IE 2000 and IE 3000 Series switches.
Compact form-factor optimizes cabinet space.
| Parameter | Specification |
|---|---|
| Part Number | PWR-IE65W-PC-AC= |
| Total Output Power | 65W |
| Output Voltage | 54V DC |
| Output Current | 1.2A |
| Input Voltage (AC) | 90–264V AC (47–63Hz) |
| Input Voltage (DC) | 88–300V DC |
| Cooling Method | Fanless (Convection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C to +75°C |
| Protection Features | OVP, OCP, OTP, SCP |
| Certifications | UL 60950-1, UL 62368-1, CE |
| Form Factor | Industrial DIN-Rail Module |
| Compatible Devices | Cisco IE 2000, IE 3000 Series Switches |
| Weight | Approx. 1.24 kg |
