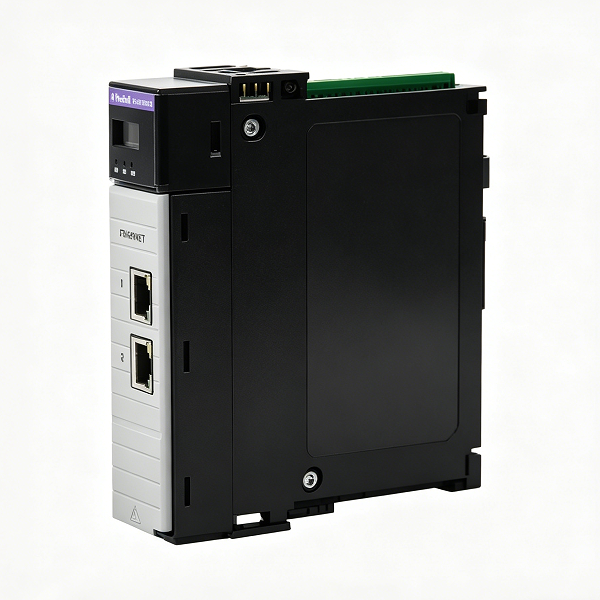

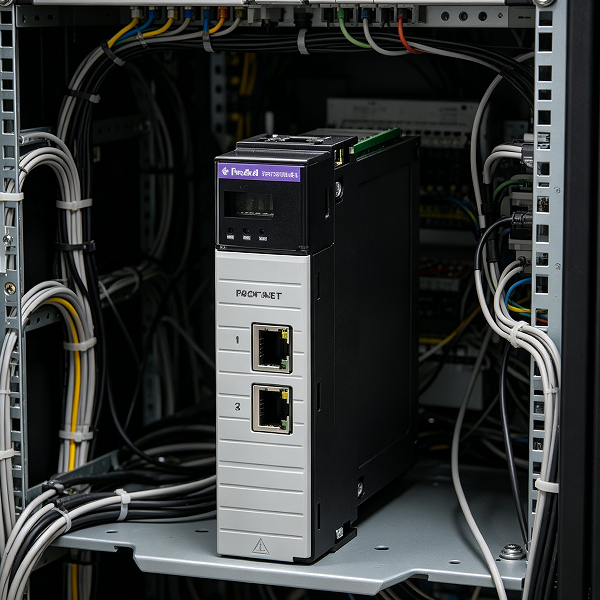

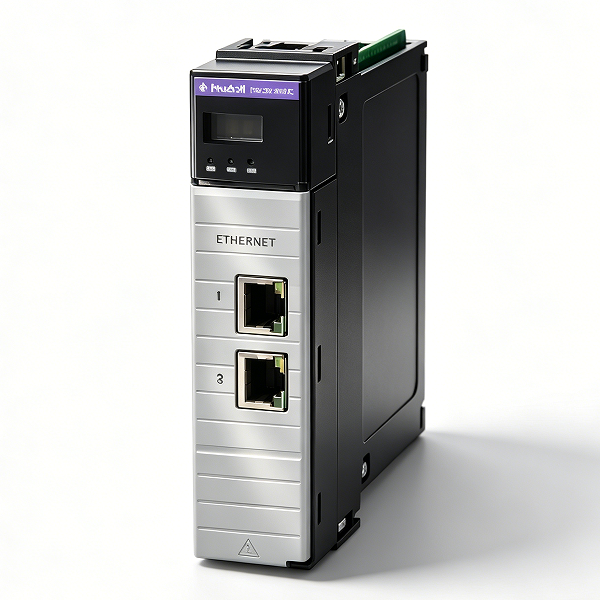

ILX56-PND PROFINET Device Module for ControlLogix®

The ILX56-PND PROFINET Device Module allows Rockwell Automation® ControlLogix® processors to communicate on a PROFINET RT protocol network supporting up to 1440 bytes of cyclic I/O data.

Combined with the use of multiple I/O connections back to the ControlLogix processor, this module provides data update rates that will meet even the most demanding of PROFINET RT applications.

In addition, with the use of the PLX50 Configuration Utility you have advanced features such as custom-built Add-On Routines and User Defined Data Types (UDTs) to minimize the amount of time and effort in getting a ControlLogix PAC operating on a PROFINET RT network.

The ILX56-PND also supports media redundancy (using the Media Redundancy Protocol – MRP) as well as PROFINET Controller redundancy (using S2 Controller Redundancy).

Features and Benefits

Remote diagnostics via configuration utility
PROFINET RT Device supporting up to 1440 bytes of Input/Output Data
Supports Acyclic parameter data exchange
Add-On Profile and custom Add-On Routines and User Defined Data Types provided to allow for seamless integration to Studio 5000
Support for S2 Redundancy applications

Specifications

PROFINET RT Device Specifications

Specification	Description
PROFINET Device Support	PROFINET RT Device
Input/Output	Maximum 1440 Bytes (input/output) per device
Minimum Device Interval	2ms
Conformance	Certified to PROFINET Conformance Level B
Redundancy	Higher availability through Media Redundancy Protocol (MRP) ring redundancy. PROFINET S2 Device Redundancy
