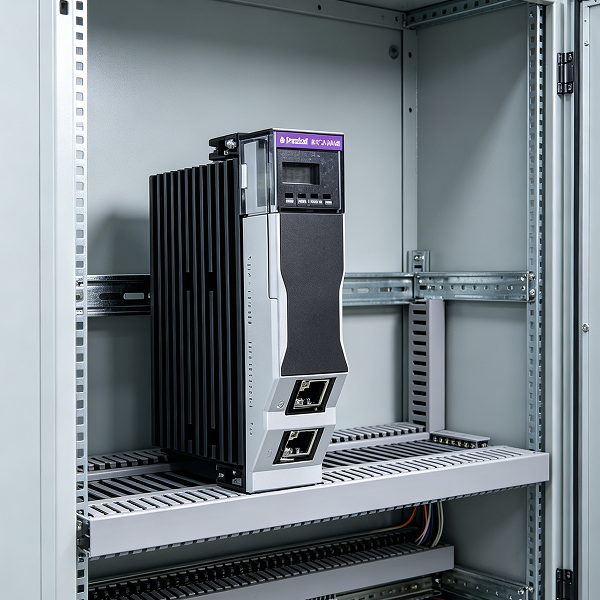

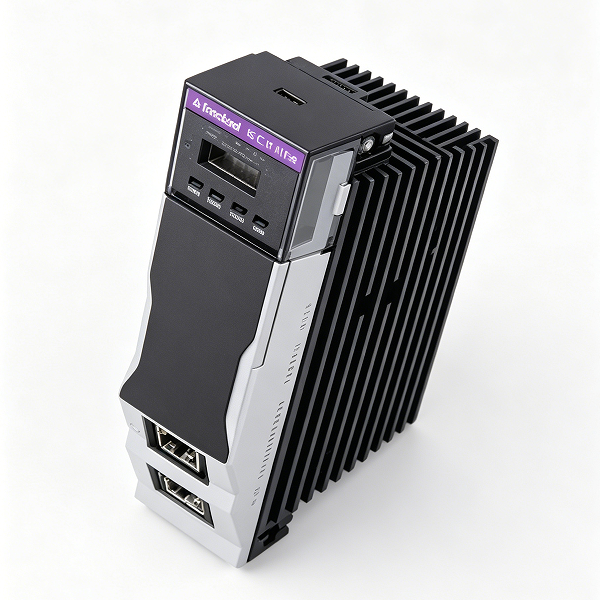

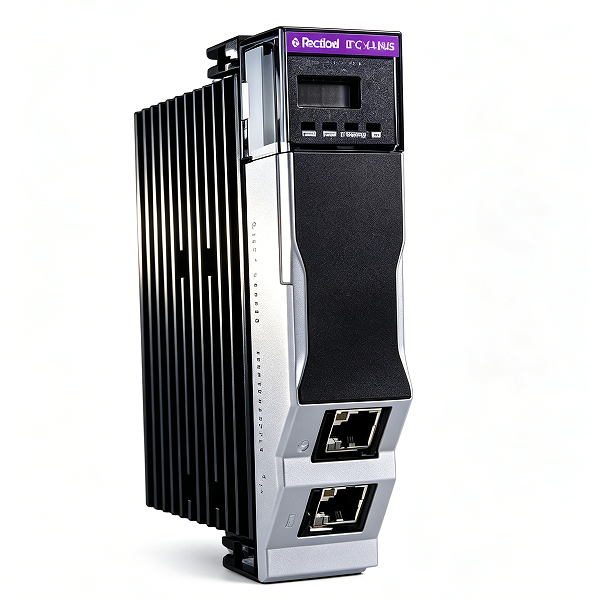

MVI56E-61850C IEC 61850 Client Communication Module for ControlLogix

The ProSoft Technology® IEC 61850 communication module allows Rockwell Automation® ControlLogix® PACs to interface with IEC 61850 Intelligent Electronic Devices (IED) such as substation power monitors and protective relays. The module operates as an IEC 61850 Client supporting the polling of devices using MMS messaging and reports. Additionally, support for GOOSE messaging as both a publisher and subscriber allows for fast data transfer between devices on an IEC 61850 network.

The dual Ethernet ports on the module provide support for Parallel Redundancy Protocol (PRP), and the module supports IEEE C37.238-2017 Power Profile for precision time synchronization of field devices.

Features and Benefits

Support for up to 40 IEC 61850 Server devices on the network.
Support for MMS, MMS Reports, GOOSE publisher, GOOSE subscriber, and control functions on an IEC 61850 Network.
Parallel Redundancy Protocol (PRP) supported for Ethernet redundancy with compatible devices.
Time synchronization based on Precision Time Protocol (PTP) support per C37.238-2017 standard (ordinary and boundary clock mode supported).
The supplied configuration software enables you to import all of your relevant IED tags into your Logix® controller tag database, reducing configuration time and errors.
Up to 225 I/O connections to the ControlLogix® processor providing large amounts of data to transfer in a real-time environment.
Standards-based identification of device types simplifies implementation and maintenance.

Specifications

Specifications - IEC 61850

Specification	Value
Supported Standard	IEC 61850 Ed 2.0
Maximum Number of IEDs	40
Supported Reports	Buffered Report Control Block (BRCB) Unbuffered Report Control Block (URCB)
Control	Direct-with-Normal-Security SBO-with-Normal-Security Direct-with-Enhanced-Security SBO-with-Enhanced-Security
Maximum Number of Reports per IED	10
GOOSE	GOOSE Subscription GOOSE Publish
Maximum Number of GOOSE Subscription per IED	4
Maximum Number of GOOSE Publish	8
Maximum Number of Tags per IED	500
Maximum Number of Tags	20,000
Status	Status available per node Report and GOOSE status available High-level status data available within Studio 5000

Backplane Specifications

Specification	Value
Maximum Number of Class 1 Connections	225
Maximum Number of Class 1 High Priority Connections	50
High Priority Connection RPI Range	[4..9,999] ms
Normal Priority Connection RPI Range	[100..9,999] ms
Maximum Class 1 Connection Input Size	500 bytes
Maximum Class 1 Connection Output Size	496 bytes
