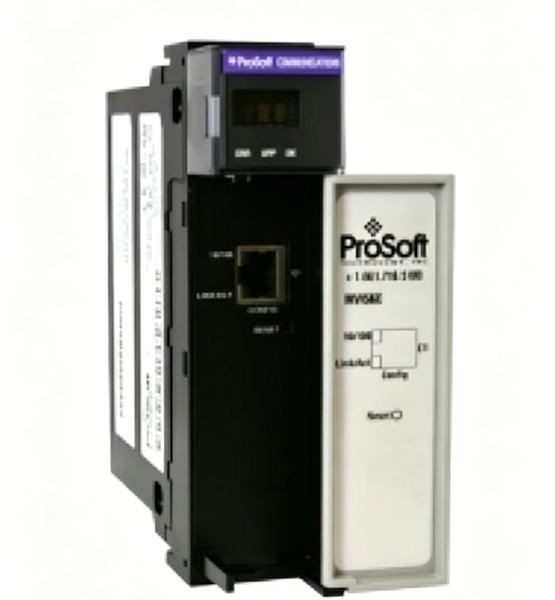

MVI56E-SMGC FMC722 TPU General Communication Module

The MVI56E-SMGC FMC722 TPU General Communication Module allows Rockwell Automation® ControlLogix® compatible processors to interface easily with FMC722 TPU General Communication Protocol devices over an Ethernet network.

The MVI56E-SMGC module interfaces an Ethernet communication device using the FMC722 TPU General Communication Protocol with the Rockwell Automation ControlLogix processor. A single client is present in the module to interface with a single server. The client permits both the reception and transmission of data between the Rockwell Automation processor and attached device.

Features and Benefits

Single Slot – 1756 backplane compatible
The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
Ladder Logic is used for data transfer between module and processor. Sample ladder file included
The module is configurable through the ProSoft Configuration Builder software
Local or remote rack
