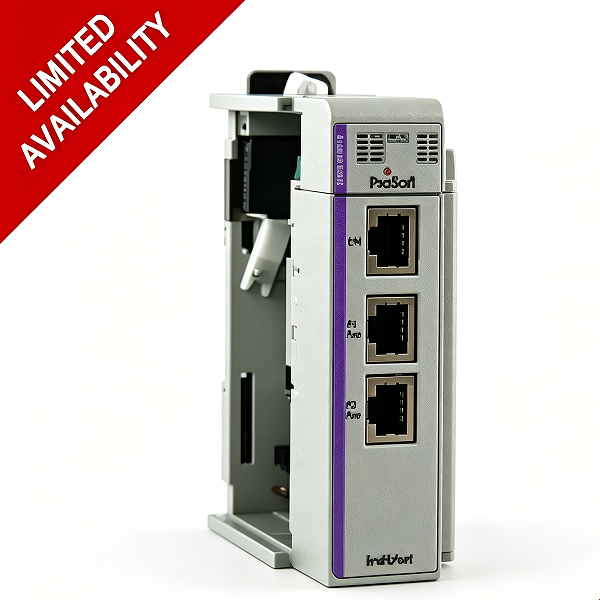

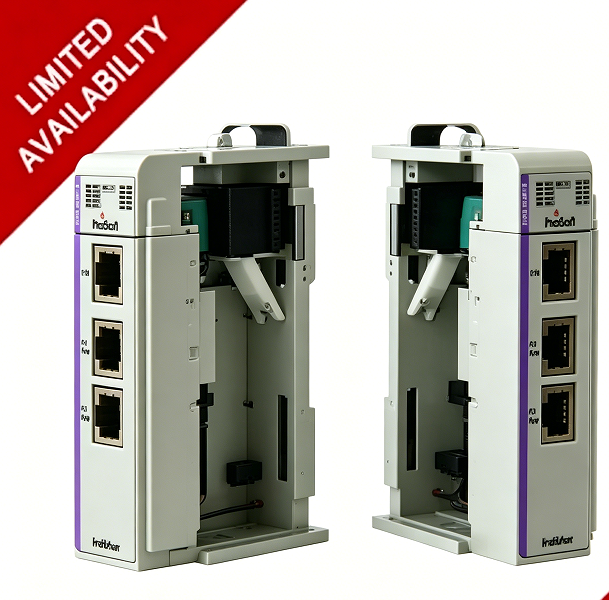

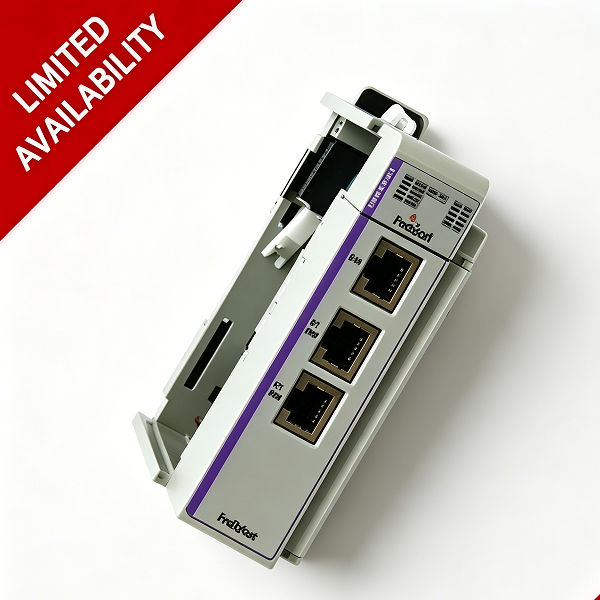

MVI69-S3964R Siemens 3964R Network Interface Module for CompactLogix

Features and Benefits

The 3964R protocol was designed by Siemens for bidirectional data communication through a point-to-point connection. It is a peer to peer protocol with read and write access. A BCC check sum ensures the integrity of the transfer.

Specifications

• Single Slot - 1769 backplane compatible

• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

• Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

• Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.

• Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)

• Also supports MicroLogix 1500 LRP
