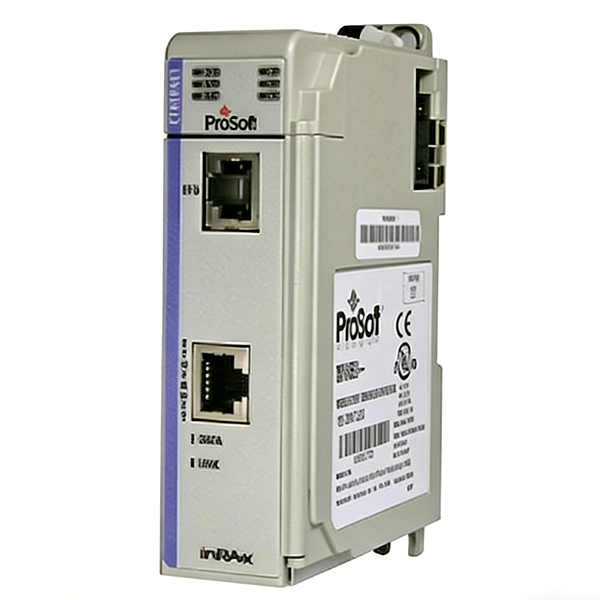

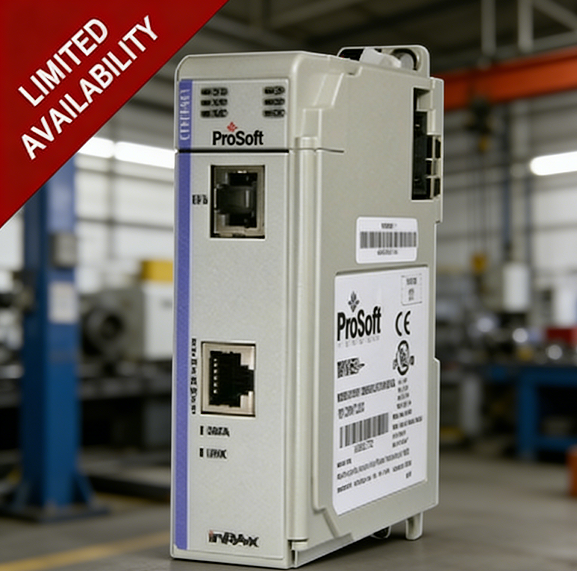

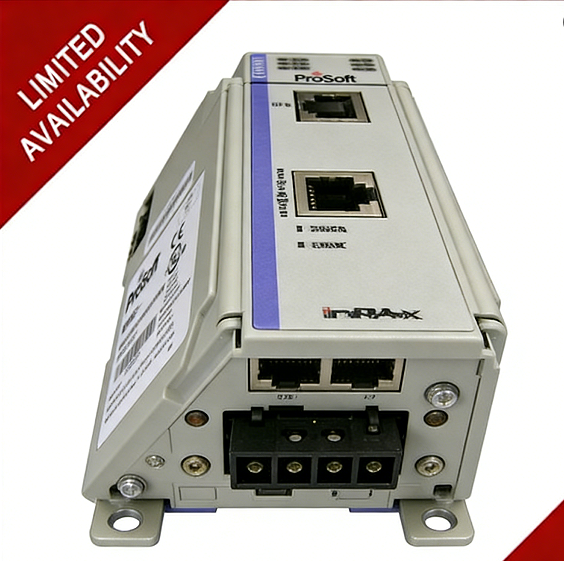

MVI69-FLN FL-Net Network Interface Module for CompactLogix

MVI69-FLN FL-Net Network Interface Module for CompactLogix

he MVI69-FLN FA Control Network communication module is a single-slot solution that allows Rockwell Automation CompactLogix processors to communicate with FL-net protocol-compatible devices. The module implements the FL-net version 2.00 (OPCN-2) specification, as defined by JEMA (The Japan Electrical Manufacturers Association) for the standard FA control network. FL-net is a master-less system.

The MVI69-FLN module acts as a gateway between the FL-net network and the CompactLogix/MicroLogix backplane. The data transfer from the CompactLogix/MicroLogix processor is asynchronous from the actions on the FL-net network. The module’s internal database can be used to exchange Area 1 and Area 2 cyclic, network, and module status data between the processor and the FL-net network.

FL-net is a peer-to-peer networking system. All FL-net devices transfer data using two shared databases with fixed sizes. The MVI69-FLN module accepts commands to control and monitor the data stored in these two databases. This data is passed between the module and the CompactLogix/MicroLogix processor over the backplane for use in customer applications.

Features and Benefits

FL-net Network

Peer-to-Peer (masterless) token-passing network control method
FA link protocol on Ethernet UDP/IP
Cyclic data transfer supports virtual memory Area 1 and Area 2. The cyclic data is mapped to the module's I/O area.

ProSoft Configuration Builder software included

Graphical drag-and-drop configuration tool for simple module configuration
Easy-to-use diagnostics window with menu-driven hardware and protocol diagnostics
View module database contents through serial connection to a desktop PC

Backed by ProSoft Technology

20-year history of delivering high-quality, reliable solutions designed with you in mind
Free, unlimited, worldwide Technical Support by phone for pre-sale, set-up, or troubleshooting support helps you get going sooner and stay running longer
Three-Year Warranty ensures reliability and protects against equipment failures
Free ProSoft software tools tightly integrate with our hardware - A simple and quick, total solution to help you make our products fit your applications

Specifications

General Specifications

Single-slot, 1769 backplane-compatible
The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module.
Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included.
Configuration data obtained from configuration text file downloaded to module. A sample configuration file is included.
Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-L23E-QBFC1B, 1769-L16x, and 1769-L18x.

Functional Specifications

Personality Module: Incorporates a non-volatile Compact Flash memory for storing the module's setup and network configuration data (or personality). This allows restoring of a module by simply exchanging the Personality Module with no PC or configuration required.
Web server: Provides product information and firmware updates.Server Functionality

Log data read service
Log data clear service
Network Parameter Read
Return Message
Profile Read

Network Management Table: According to FL-net version 2.00 specification
Own-node Management Table: According to FL-net version 2.00 specification
Participating Node Management Table: According to FL-net version 2.00 specification Network configurable via a text file
