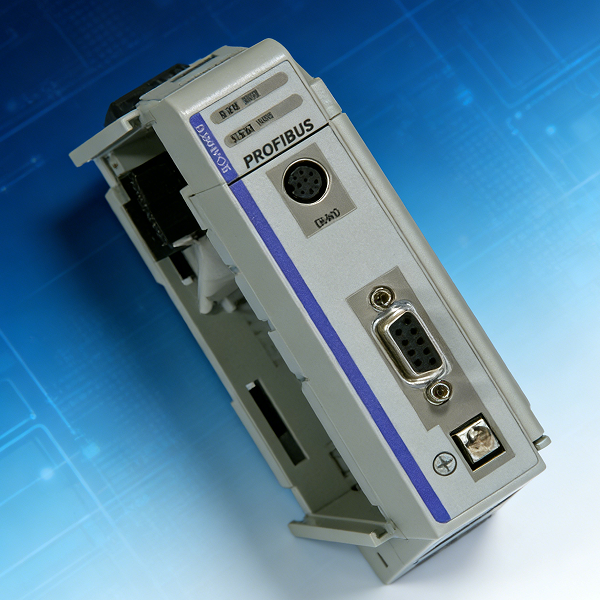

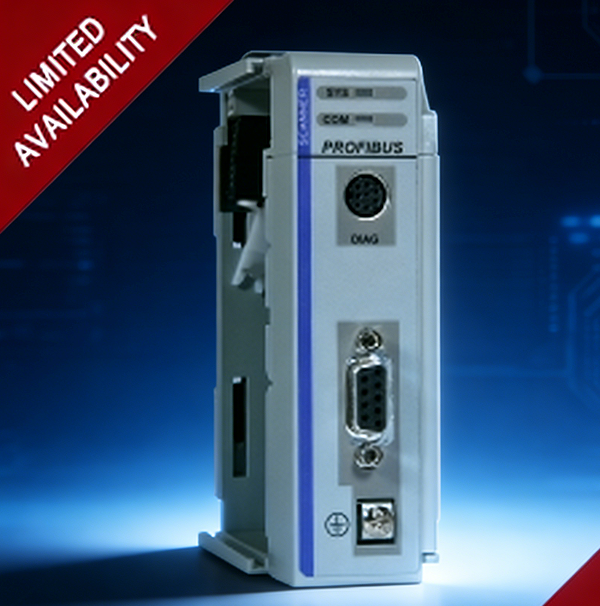

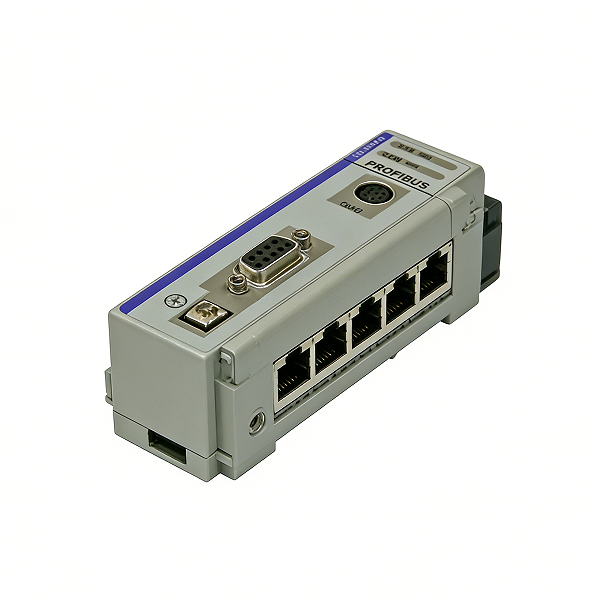

PS69-DPM PROFIBUS DPV1 PS69 Master Network Interface Module for CompactLogix

PS69-DPM PROFIBUS DPV1 PS69 Master Network Interface Module for CompactLogix

The PS69 PROFIBUS DP Master module expands the functionality of ’s CompactLogix / MicroLogix family of processors to include PROFIBUS. This module supports both I/O control and messaging, thus integrating DPV0 and DPV1 functionality into CompactLogix / MicroLogix.

The PS69-DPM is a CompactLogix / MicroLogix compatible, PROFIBUS certified module, which enables controllers to communicate with a PROFIBUS network. The configuration and diagnostic of the PROFIBUS system is done via the serial diagnostic interface of the module using the System Configuration tool . The data exchange between controller and module is done via the I/O process data image using CompactLogix / MicroLogix backplane technology.

Features and Benefits

PROFIBUS certified	Recognized quality certification mark
FDT configuration software and communication DTM included	Module DTM will configure master module and network slave devices. The DTM can be used in many FDT compatible software containers
Sample ladder program	Simplifies integration for quick and easy project start-up
Supports CIP ladder logic messaging	Request diagnostic, status and slave data based on ladder events. Offer better cyclic data performance

Specifications

Specification	Description
Slaves	Maximum 125
Input/Output	Maximum 244 Bytes per Slave
Input Data	Maximum 408 Bytes (*)
Acyclic Data	DPV1
Status data	88 Bytes
Output data	Maximum 480 Bytes (*)
Command data	16 Bytes
DPV1 services	Read / Write class 1, Alarm
Services	Global-Control, Slave-Diag, Set-Parameter
Sync, Freeze Command	Supported

Up to 32 PROFIBUS devices can be connected to one bus segment. If several bus segments are linked to each other with repeaters, there can be up to 127 devices on the network.

The maximum length of a bus segment depends on the baud rate used. Only PROFIBUS certified cable, preferably the cable type A, should be used.

Baud rate in kBit/s	Max. Distance
9.6	1,200 m / 4000 ft
19.2	1,200 m / 4000 ft
93.75	1,200 m / 4000 ft
187.5	1,000 m / 3280 ft
500	400 m / 1300 ft
1,500	200 m / 650 ft
3,000	100 m / 325 ft
6,000	100 m / 325 ft
12,000	100 m / 325 ft
Parameter	Value
Impedance	135 to 65 Ohm
Capacity	< 30 pF/m
Loop resistance	110 Ohm/km
Wire gauge	0.64 mm

Single Slot – 1769 backplane compatible
The module is recognized as an I/O module and the data exchange between controller and module is done via the I/O data image using CompactLogix / MicroLogix backplane technology.
Ladder logic is used for data transfer between module and processor. Sample ladder file included.
Supports CompactLogix processors and MicroLogix 1500 LRP
