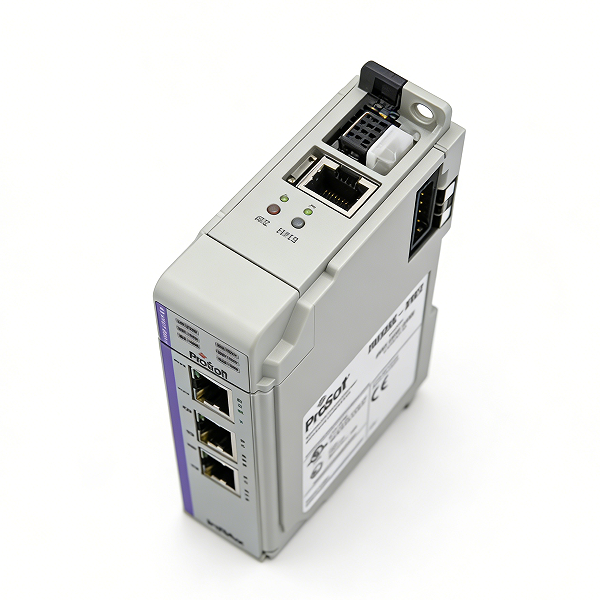

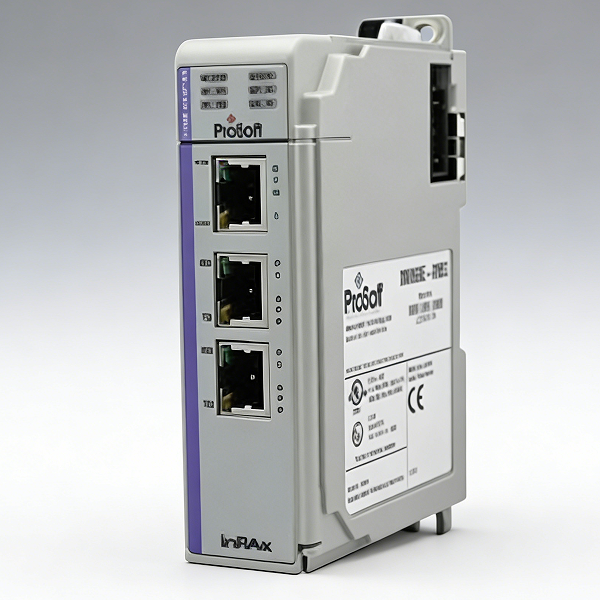

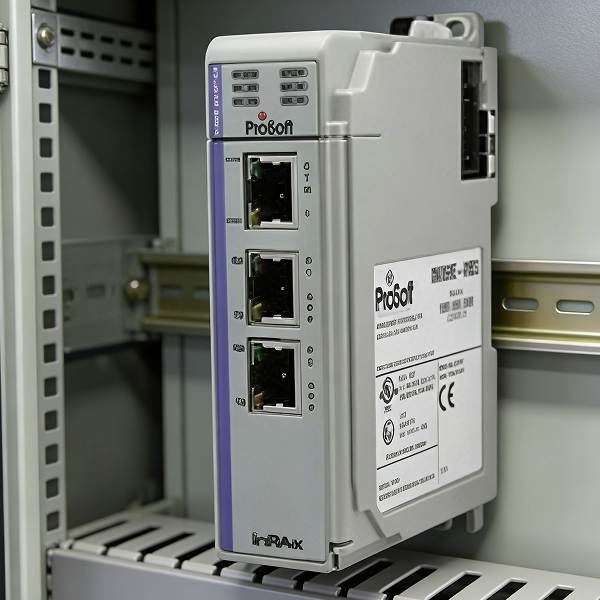

MVI69E-MBS Modbus Serial Enhanced Communication Module

MVI69E-MBS Modbus Serial Enhanced Communication Module

The MVI69E-MBS Modbus Serial module for CompactLogix™ is designed for all applications requiring Modbus Serial connectivity. This module comes with an Add-on Profile and an Add-on Instruction to reduce commissioning time. The MVI69E-MBS has two serial ports and can support both Master and/or Slave connectivity to interface with a variety of devices using the Modbus Protocol.

A conformal coating option is available for this product.

Features and Benefits

Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)
Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data
Add-on Profile support, improving integration in the CompactLogix System
Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health
Module configuration backed up in CompactLogix project (ACD file)
Module acts as a co-processor reducing impact to PLC scan time
Supports up to 10,000 words of data
Supports up to 250 Modbus Commands per port
Each port can be configured individually as a Modbus Master or Modbus Slave device
Supports Enron and Daniel-style Floating point data implementations
Suitable for SCADA and field device interface applications

Specifications

Configuration	ProSoft Configuration Builder
I/O Size	60/120/240 - 16 bit integers
Communication parameters	Baud Rate: 110 to 115K baud Stop Bits: 1 or 2 Data size: 7 or 8 Bits Parity: None, Even, Odd RTS Timing delays: O to 65535 milliseconds
Modbus Modes	RTU mode (binary) with CRC-16 ASCII mode with LRC error checking
Floating Point Data	Floating point data movement supported, including configurable support for Enron, Daniel®, and other implementations
Modbus Function Codes Supported	1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register 8: Diagnostics (Slave Only, Responds to Sub function 00)	15: Force (Write) Multiple Coils 16: Preset (Write) Multiple Holding Registers 17: Report Slave ID (Slave Only) 22: Mask Write Holding Register (Slave Only) 23: Read/Write Holding Registers (Slave Only)
Modbus Master
Command List	Up to 250 command per Master port, each fully configurable for function, slave address, register to/from addressing and word/bit count.
Polling of command list	Configurable polling of command list, including continuous and on change of state.
Status Data	Error codes available on an individual command basis. A slave status list is maintained per active Modbus Master port.
Modbus Slave
Node Address	1 to 247 (software selectable)
Status Data	Error codes, counters and port status available per configured slave port
