MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module

MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module

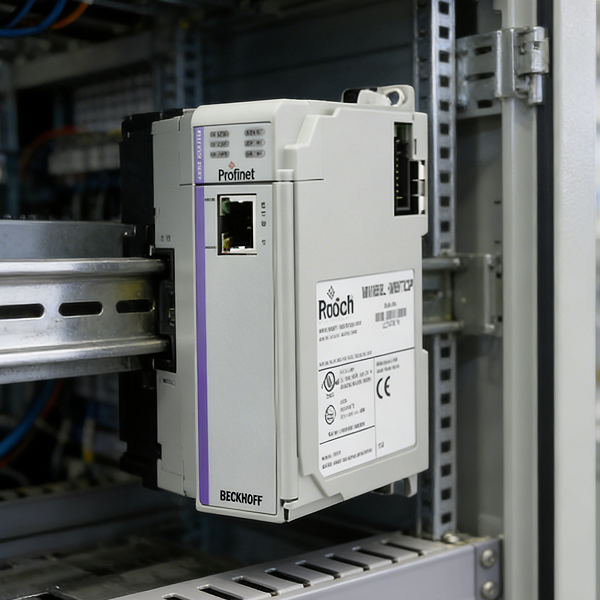

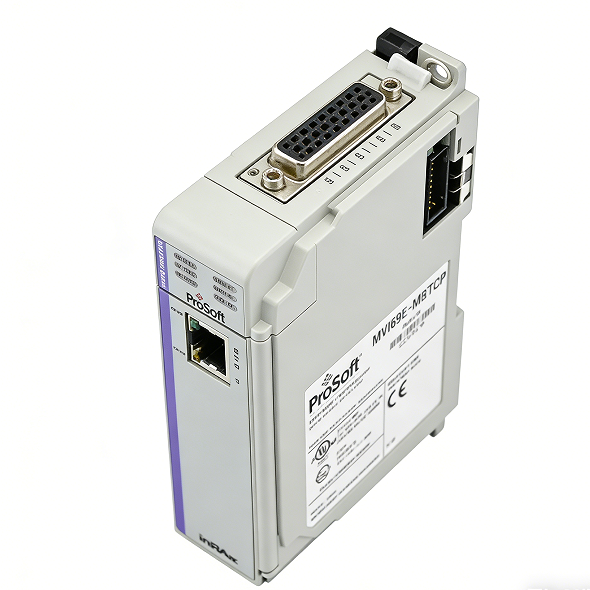

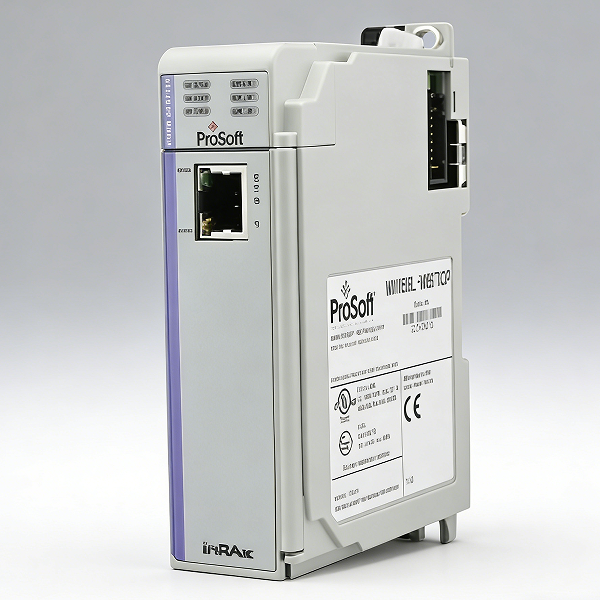

The MVI69E-MBTCP Modbus TCP/IP module for the CompactLogix™ series of controllers is designed for all applications requiring Modbus TCP connectivity. This module comes with an Add-on Profile and an Add-on Instruction to reduce commissioning time. The MVI69E-MBTCP has a single Ethernet port for diagnostic and application data. The module supports both Client and Server connectivity to interface with a variety of devices using the Modbus Protocol.

Features and Benefits

Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)
Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data
Add-on Profile support, improving integration in the CompactLogix System
Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health
Module configuration backed up in CompactLogix project (ACD file)
Module acts as a co-processor reducing impact to PLC scan time
Supports up to 10,000 words of data
Supports up to 20 Client and 20 Server connections simultaneously
Supports Enron and Daniel style Floating point data implementation
Suitable for SCADA and field device interface applications

Specifications

Configuration	ProSoft Configuration Builder
I/O Size	60/120/240 - 16 bit integers
Available Data	10,000 words
Floating Point Data	Floating point data movement supported, including configurable support for Enron, Daniel®, and other implementations
Modbus Function Codes Supported	1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register 8: Diagnostics (Slave Only, Responds to Sub function 00)	15: Force (Write) Multiple Coils 16: Preset (Write) Multiple Holding Registers 17: Report Slave ID (Slave Only) 22: Mask Write Holding Register (Slave Only) 23: Read/Write Holding Registers (Slave Only)
Modbus Client
Configured as a Modbus Client, the module actively issues Modbus commands to other nodes on the Modbus network.
Client Connections	20
Command List	Up to 16 command per Client connection, each fully configurable for function, slave address, register to/from addressing and word/bit count.
Command Control	Configured commands can be controlled directly from ladder logic
Polling of command list	Configurable polling of command list, including continuous and on change of data.
Status Data	Error codes available on an individual command basis. In addition, a slave status list is maintained per active Modbus Client
Modbus Server
Configured as a Modbus Server, the module acts as a node and permits a remote Client to interact with all data contained in the module.
Server Connections	10 - MBAP Connections 10 - Encapsulated Modbus Connections
Status Data	Error codes, counters and port status available per configured slave
